The Bush Burro
Features
-
22 Cubic Feet Body
-
High Density Polyethylene
-
60"L 48" W x 33" H
-
Rated Payload - 950lb
-
Tilts/Dumps
-
Galvanized Frame, Wheels
-
Galvanized Tongue Handle & Foot
-
2" Coupler - Removable
-
Body is UV Stabilized
-
Easy to Clean - Drainage Plug
-
Floats
-
Standard Color is Black
-
22" x 11" x 8" Knobby Tires
-
10" Ground Clearance
Optional
-
Skid Plates
-
Hinged Top
-
Skis for Winter Use
-
Light Kit
-
Tongue Box
-
Swivel Hitch
-
Colours - Dark green, Red, Yellow, Lime Green

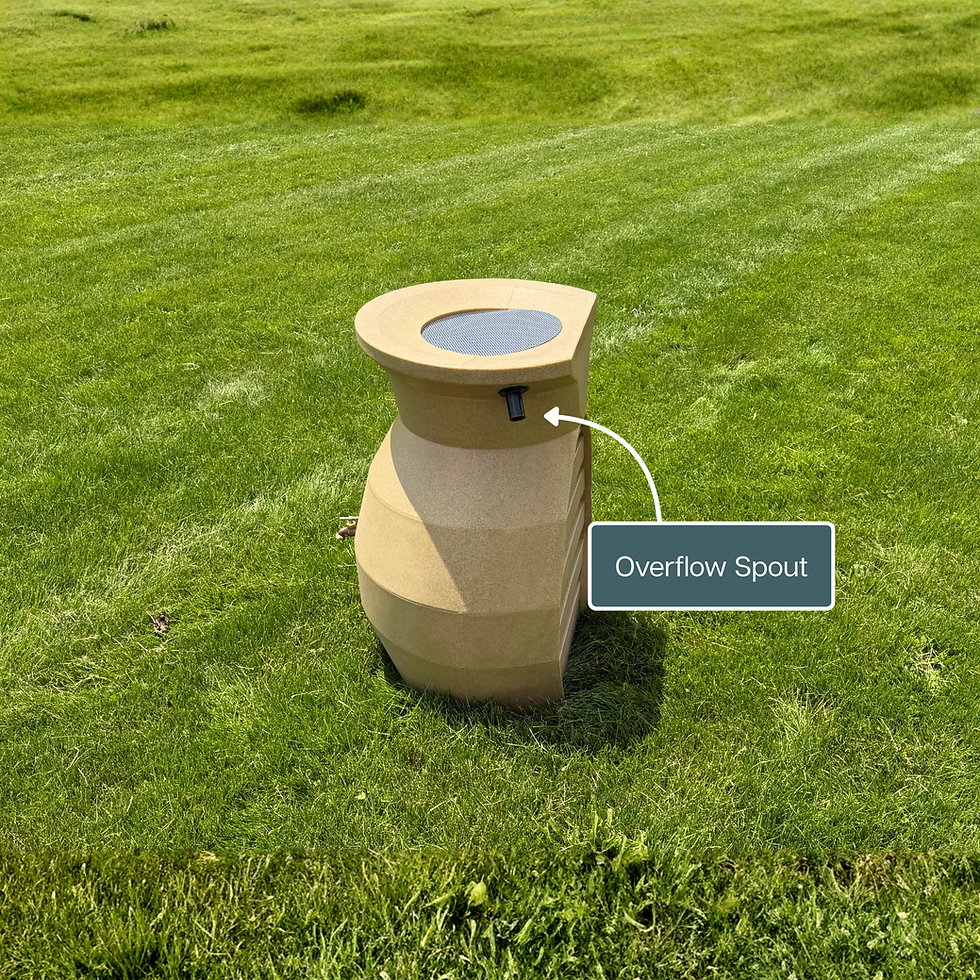

The Rain Barrel
Features
CONSERVE WATER IN A BEAUTIFUL WAY
-
60 & 45 Gallon Rain Barrels
-
Unique Appearance and Colour
-
High Density Polyethylene
-
Brass Spigot: Easily Accessable To Water Can
-
Lower Drain Plug Drains Bottom Of Barrel and Can Be Used With Soaker Hose
-
Plastic Screen To Filter Debris
-
Overflow Spout
-
Well Balanced Base For Stability
-
UV Resistant
-
Will Not Chip, Crack or Fade With Normal Use
Coaches
Caddy
Features
-
Retractable handle
-
Casters
-
Latches
-
Coffee holders
-
Finger-lift grips
-
Interlocking lid and puck carrier
-
Integrated whiteboard retention
-
Molded safety kit retention
-
Integrated storage pockets
-
Assembly access for internal components
-
Water bottle cavity enabled by multiple draw planes
Product Development.
We have developed products in a variety of industries from Medical to Mining. Our years of experience coupled with our broad range of industry involvement allows us to bring these collective learnings and expertise to your project needs. Let us help you get the most out of your product designs.
Flashing Beacon
This Flashing Beacon product was developed for North America Traffic www.northamericatraffic.com The project included concept development through to final design and tooling design. This Flashing Beacon product was developed for North America Traffic www.northamericatraffic.com The project included concept development through to final design and tooling design. The Flashing Beacon was chosen as "Product of the Year" for 2013 as awarded by the Association of Rotational Molders at their annual conference. The Flashing Beacon is a solar powered LED signaling device used in conjunction with a variety of traffic signs. The customer, North America Traffic, had developed the technology and had asked us to design a housing that could be used in a number of different geographical regions where environmental conditions would vary. The traditional metal enclosure was not sufficient for this application. The challenge of this design was to incorporate several components and securely house them while maintaining the integrity of the housing based on the environmental scope. Consideration had to be given to ease of installation and variables including snow load conditions to ensure that the unit could optimize solar exposure. Rescraft developed the housing utilizing a single tool which significantly reduced the go-to-market costs.

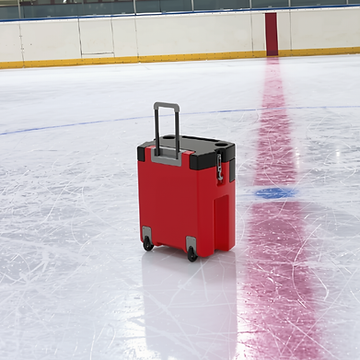

Coaches Caddy
The Coach's Caddy project incorporated concept development through to final design, tooling design, component sourcing and final assembly. The Coach's Caddy was a turnkey project to develop a portable carrier for housing coaching equipment for the hockey industry. Our customer provided the project scope and a wooden mock-up of a proposed design. The challenge of this design was to integrate several component requirements into a single unit without adding multiple fastening features that would drive the product cost up. Utilizing locking features between the various molded parts and developing tight-toleranced self-locking keyed assemblies we were able to reduce the number of fasteners to two hold-down straps. In addition to the design of the plastic parts, Rescraft sourced components and negotiated pricing for all purchased components including the retractable handle, wheels, and whiteboard. Rescraft also provided the complete assembly, quality inspection and packaging of the Caddy for direct shipment to the end customer.
Mobile Display
This Mobile Display product was developed for R.Jones Print and Display Inc. www.rjonesprintanddisplay.com This project included conversion to plastics, final design, component sourcing and final assembly. The Mobile Display product was developed for R.Jones Print and Display (www.rjonesprintanddisplay.com) The product was designed for confectionery displays and incorporates an innovative removable signage wrap that can be changed out for multiple customer promotions as compared to permanent graphics. The challenge of this design was to develop a container that would incorporate a false bottom utilizing the cutout from the top of the container. The bin was sized to an optimum display height, but product needed to be accessible within an appropriate reach. The notches in the bin to accommodate the false bottom and signage wrap became design concerns specific to maintaining the shape during cooling process. Vertical channels were added to shape to eliminate the concern. In addition to the design of the plastic parts, Rescraft sourced components and negotiated pricing for all purchased components including the low-profile wheels. Rescraft also provided the complete assembly, quality inspection and packaging of the bin for direct shipment to the end customer.
Resmark is a line of high-end rotomolded products
Rescraft Plastic Products Inc. has gained extensive experience and knowledge through the manufacturing and distribution of quality rotationally molded products for our valued customers. We have now taken this experience and knowledge and applied it to our own line of products under the Resmark brand.
Resmark was established to satisfy a recognized need in the marketplace for the manufacturing and distribution of a high-end line of rotationally molded products. This new line of products and the programs used to create these products were designed to be handled through a select network of dealers and distributors. Our new and innovative programs were developed to create strong profitability and excellent growth potential for all levels in the supply chain.
Please contact us to find out more about distribution opportunities with the Resmark line of rotationally molded products.
